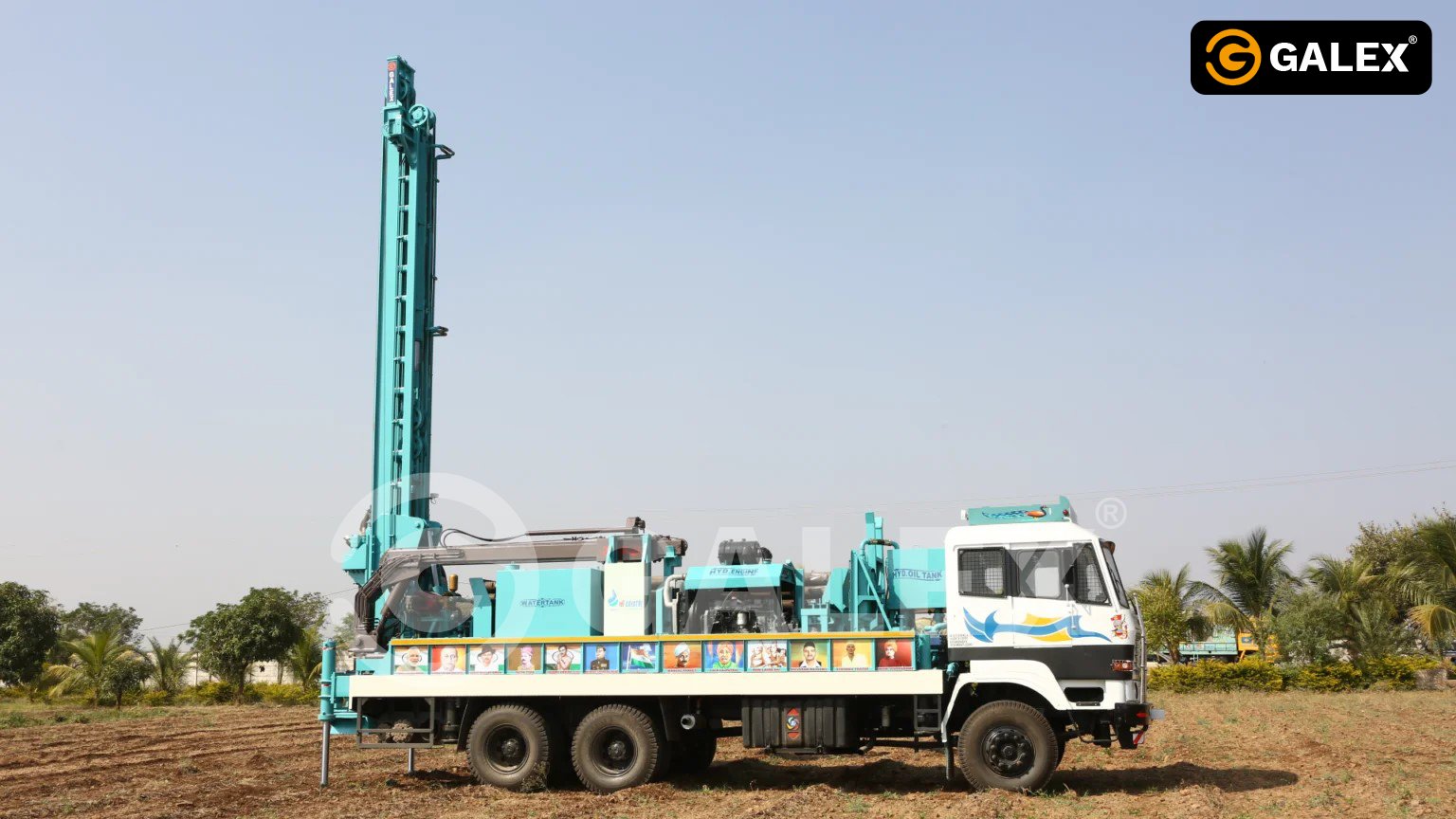

MODAL GALEX 454MC
DRIL DIAMETER
(6.0" - 8.0")**
DRILLING DEPTH
Up to 1500 feet**
HYDRAULIC OIL TANK CAPACITY
300 LTRS
MAST CAPACITY
Approx. 27 feet (8.23 mtrs)
MAST HEIGHT
Approx. 9.34 mtrs
MAST CONSTRUCTION
8 inch structural channel supported by square pipe.
WATER PUMP
120 LPM
HYDRAULIC JACK
125mm- 4 nos, 125mm- 1 nos, mast cylinder 160mm, 75mm back out cylinder.
HYDRAULIC WINCH
Attached gearbox powered by hydraulic motor, capacity up to 1 ton.
HAMMER VICE
Heavy structural of plates with 3 to 4 attachable jaws, 150mm, 160mm, 180mm, and 200mm hammer may be opened.
APPLICATION
Water well drilling, mining application.
HYDRAULIC DRIVE SYSTEM
50gpm and 17gpm gear pump permco usa driven by pto gearbox through diesel power engine 160hp.
ROTARY HEAD GEARBOX
Indigenous rotary head design, omt315 hydraulic motor used for drive gearbox with torque of 230nm(max)* at 2000psi.
HYDRAULIC CIRCUIT
indigenous hydraulic circuit design, pressure up to 3500psi.
DRIL DIAMETER
(6.0″ – 8.0″)**
DRILLING DEPTH
Up to 1500 feet**
HYDRAULIC OIL TANK CAPACITY
300 LTRS
MAST CAPACITY
Approx. 27 feet (8.23 mtrs)
MAST HEIGHT
Approx. 9.34 mtrs
MAST CONSTRUCTION
8 inch structural channel supported by square pipe.
WATER PUMP
120 LPM
HYDRAULIC JACK
125mm- 4 nos, 125mm- 1 nos, mast cylinder 160mm, 75mm back out cylinder.
HYDRAULIC WINCH
Attached gearbox powered by hydraulic motor, capacity up to 1 ton.
HAMMER VICE
Heavy structural of plates with 3 to 4 attachable jaws, 150mm, 160mm, 180mm, and 200mm hammer may be opened.
APPLICATION
Water well drilling, mining application.
HYDRAULIC DRIVE SYSTEM
50gpm and 17gpm gear pump permco usa driven by pto gearbox through diesel power engine 160hp.
ROTARY HEAD GEARBOX
Indigenous rotary head design, omt315 hydraulic motor used for drive gearbox with torque of 230nm(max)* at 2000psi.
HYDRAULIC CIRCUIT
Indigenous hydraulic circuit design, pressure up to 3500psi.
