DTH DRILLING RIG

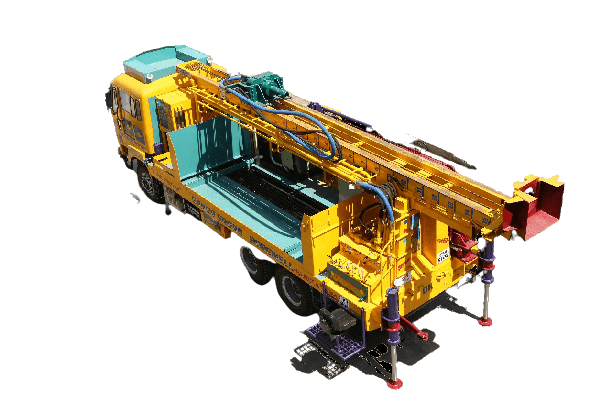

DTH Drilling Rig is a machine that makes boreholes down to earth for water well and mining applications. there are many types of DTH drilling rigs used for the same.
MAJOR DEPARTMENTS
RAW MATERIAL
STORAGE
Raw iron steels like m s plates, angels, c channel,
flats, bar, i-beam and etc.
CUTTING,TRIMMING AND STRAIGHTENING
Machine like:
- Hacksaw machine 250mm2
- Gas profile cutting machine 2000mm
- Gas cutting up to 75mm thickness
- Hydraulic press for plate straightening
DECK PLATEFORM
AND TANK
- Electric arc welding – 1
- Rectifier arc welding – 2
- Plate straightening jigs
- Hole templates for tank
MACHINE
SHOP
- Conventional lathe machines – 3
- Piller drill – 1
- Radial drill 40mm – 1
- Shaper 32” – 1
- Measuring instruments vernier, micrometer, and bore gauge
- Hydraulic press for gearbox fitment
MAST AND ROD
CHANGER
- Rectifier arc welding machine – 2
IGBT welding machine – 1
- Dedicated hydraulic press for mast straightening
HYDRAULIC
CIRCUIT
- IGBT arc welding machine – 1
- Electric arc welding – 2
- Jig and fixture for piping
- Indigenous made hydraulic pipe bending machine
- Up to 2 inch dia. pipe
WELDING
PROCESS
- Welding position from 1G to 6G.
OTHER PROCESS ADOPTION
HEAT
TREATMENT
- Hardening process
- Gas carburizing
- Nitriding process
- Induction hardening
- Annealing process
MACHINING
ADOPTION
- Boring up to 1400mm
- Surface grinding
- Cylindrical grinding
- Milling work
QUALITY AND
CONTROL
- We are an ISO 9001:2015 certified company for quality management system.
- For tanks, we do water tests for leakages of welding joints.
- for hydraulic circuit, we do acid wash and diesel wash and water pressure wash for ensuring microleakages. then after, we test piping at 3500psi pressure at max.
- For the machine shop, we inspect all dimensions of part as per final drawing.
- For hardening, we inspect hardness.
- For fabrication parts, we do normalize at normal temperature.
